Spiral Spring
Spiral spring is also called the power spring , which is made by the steel ribbon, it can be divided into the natural type power spring and the prestress force type power spring due to its relaxed shape. The natural type power spring is made directly by the wrapped steel, while the prestressed force type power spring will finalize the shape first, then reverse the direction into a spiral shape, its shape after spread out just looks like the letter S , hence it is also known as the S-shaped spring.
When we use the spiral spring, we need to use a case to confine its outer diameter, the middle of the spring is connected to the line shaft. Once the line shaft and the spring do relative rotation by the external force, the spring will be rolled onto the line shaft and store power. After the external force disappears, the spring generates torque force to drive the line shaft, and output the storage power via the line shaft at the same time. Comparing under the same specification spring, the prestress force type can store more torque force of 25%~40% , it can provide more rotation turns under the same space.

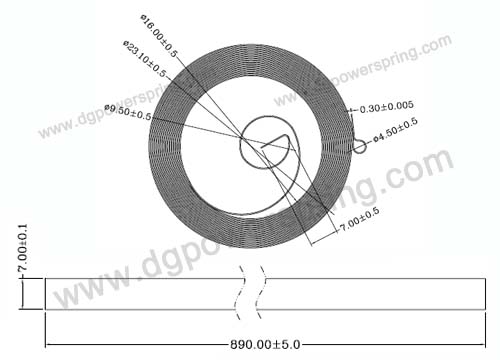

Dimension Data of WJ040
Application of Spiral Spring
1) timers
2) cord retractors
3) counter balance
4) wind-up toys and games
5) electricl and mechanical reels
Spiral Spring Examples

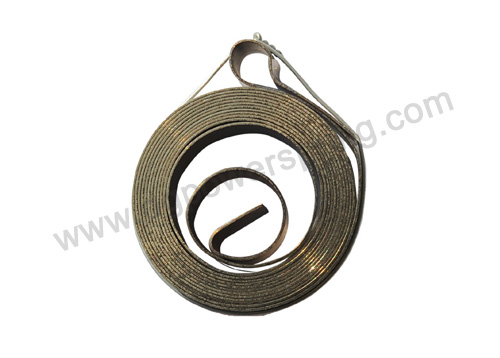

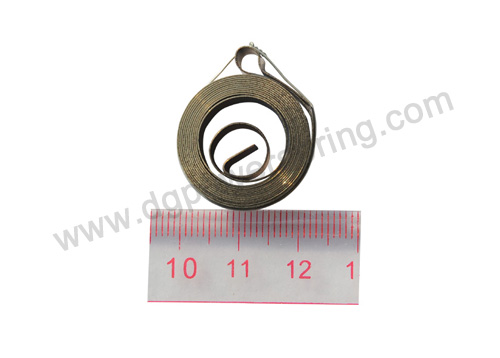

S-Shaped spring Spiral spring
Diagram of Torsion Example
Application Examples
1. constant force spring for motor brush
examples: motor brush, collecting slip ring, etc
2. fasten tension and pressure
examples: automative propelling display shelf, nail puller, conveyor, video, etc
3. retracting devices
examples: power cord, car safety belt, hose reel, etc.
4. balancing devices
examples: adjusting height of LCD display, fan and medical X-ray machines, etc.
5. automative sliding devices
examples: the cup holder and ashtray in car, adjustable drawer, etc.
6. power producer
examples: timer, toys, etc.
