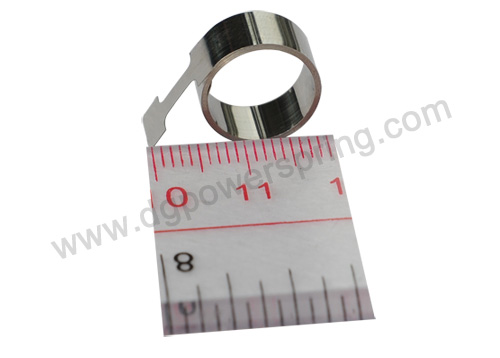

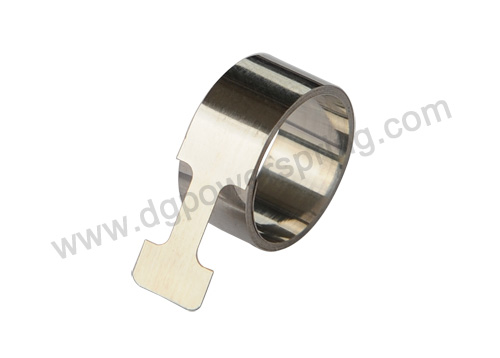

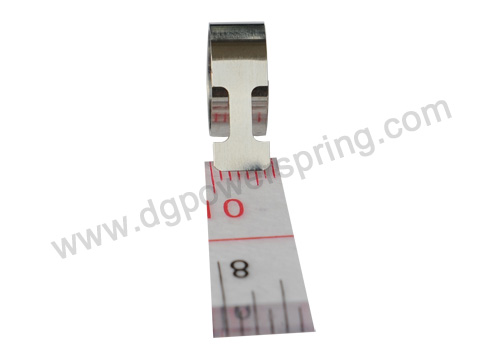

Constant Force Spring
The constant force spring is made by the rolled stainless steel ribbon, through a particular machine to stereotypia the high strength steel ribbon, when it is straightened by an external force , the constant force spring will roll by naturally and then generate elastic force. Thereby, the object can go back to the appionted original place. Comparing with the traditional line spring, the advantage of the constant force spring is: it keeps particular elastic force during the route, and route of the prestressing is short, that is say, we can get the necessary elastic force with a shorter route, the original length is smaller than the line spring, unlimited route.

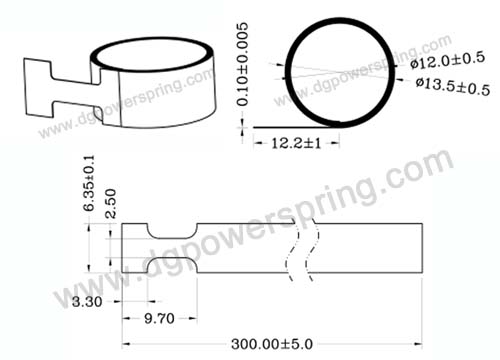

Dimension Data of DL058
Application of Constant Force Spring
1) motor brush
2) industrial tools
3) height adjustment
4) medical and healthcare device
5) roller shutter or window balance
6) automative and transportation device
7) store propelling shelf and POP display
Installation Example
Application Examples
1. constant force spring for motor brush
examples: motor brush, collecting slip ring, etc
2. fasten tension and pressure
examples: automative propelling display shelf, nail puller, conveyor, video, etc
3. retracting devices
examples: power cord, car safety belt, hose reel, etc.
4. balancing devices
examples: adjusting height of LCD display, fan and medical X-ray machines, etc.
5. automative sliding devices
examples: the cup holder and ashtray in car, adjustable drawer, etc.
6. power producer
examples: timer, toys, etc.
Welcome RFQ For OEM Service
Yongsheng has engaged in all kinds of precision spring, has 15 years R&D and OEM experience. We help our clients to solve lots problem during developing and design period. please send us below details, and we are pleased to provide you with cost effective products:
1) application of the power spring
2) required dimension and material
3) drawings or sample will be prefered
Production Range
1) Width: 2~80mm
2) Thickness: 0.08~0.7mm
3) Length: according to your needs
4) Material: Stainless steel or High Carbon Steel
